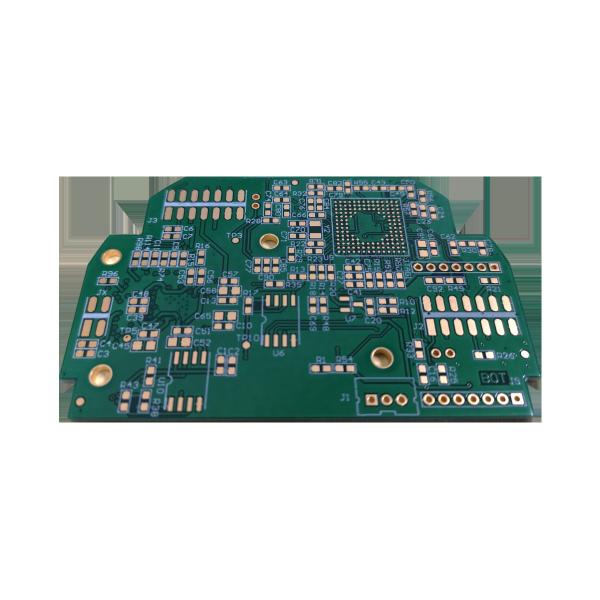

Tly-5 (PTFE) + high Tg mixed pressure, 1 + 4 + 1 structure, disk hole HDI arbitrary interconnection circuit board is one of a series of UAV PCB circuit boards developed and produced by Shenzhen Quanhong Electronics Co., Ltd., which is mainly used in the field of UAV. The PCB is made of tly-5 (PTFE) + high Tg mixed pressure material, surface gold deposition and other production processes.
Rigid PCB Manufacturing Capability
| Rigid PCB Manufacturing Capability | ||
| Item | PCB | HDI |
| Layer | 1-40 | 1-40 |
| Minimum linewidth/linespacing | 3MIL/3MIL(0.075mm) | 2MIL/2MIL(0.05MM) |
| Minimum hole diameter | 6MIL(0.15MM) | 6MIL(0.15MM) |
| Minimum solder resist opening (single-side) | 1.5MIL(0.0375MM) | 1.2MIL(0.03MM) |
| Minimum solder resist bridge | 3MIL(0.075MM) | 2.2MIL(0.055MM) |
| Maximum aspect Ratio (thickness/hole diameter) | 10:01 | 8:01 |
| Impedance control accuracy | +/-8% | +/-8% |
| Finished thickness | 0.3-3.2MM | 0.2-3.2MM |
| Maximum board size | 630MM*620MM | 620MM*544MM |
| Maximum finished copper thickness | 6OZ(210UM) | 2OZ(70UM) |
| Minimum board thickness | 6MIL(0.15MM) | 3MIL(0.076MM) |
| Maximum layer | 14层 | 12层 |
| Surface treatment | HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag | Immersion Gold,OSP,selectiveimmersion gold, |
| carbon print | ||
| Min/max laser hole size | / | 3MIL / 9.8MIL |
| Laser hole size tolerance | / | 10% |
| Packaging & Delivery | |||||
| Packaging Details: | Inner: vacuum packing or Anti-static package, Outer: export carton or according to the customer's requirement. | ||||
| Port: | Shenzhen or Hongkong | ||||
| Lead Time: | Quantity(Pieces) | 1-10 | 11-100 | 101-1000 | >1000 |
| Est. Time(days) | 20 | 21 | 25 | To be negotiated | |
