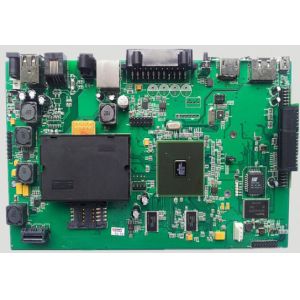

Professional medium and high-end samples, small and medium batch OEM PCB / PCBA manufacturers
4 Years
| Ask Lasest Price | |
| Brand Name : | FASTPCB |
| Price : | USD 0.01-100/PCS |
| Supply Ability : | 10PCS+48Hour |
Industrial control industry products and technology is very special. For other industries to provide reliable, embedded, intelligent industrial computers. With the deepening of social information from time to time, belongs to intermediate products. Key tasks of key industries will increasingly rely on industrial computer, and IPC based on low interest industrial control automation is becoming the mainstream, industrial computer manufacturers are paying more and more attention to the level of higher. As electric power, metallurgy, petrochemical, environmental protection, transportation, construction and other industries, the rapid development of the digital home use set-top boxes, digital TV, bank teller machines, highway toll system, gas station management, manufacturing production line control, finance, government, defense industries such as information demand increase from time to time, is a big demand for industrial control, industrial computer market development prospect is very broad, Let's take a look at what the industrial computer industry will look like in the future.
1. Develop in a comprehensive direction
Due to the development of standardized data communication lines and communication networks, all kinds of single (more) loop regulator, PLC, industrial ratio, NC and other industrial control equipment constitute a large system, in order to meet the requirements of factory automation, and adapt to the trend of openness.
2, to intelligent direction of development
Due to the development of database system, reasoning function, especially knowledge base system (KBS) and expert system (ES) application, such as self-learning control, remote diagnosis and self-excellence, artificial intelligence will be realized at all levels of DCS. Similar to FF fieldbus, microprocessor-based intelligent devices such as intelligent I/O intelligent PID control, intelligent sensors, transmitters, actuators, intelligent human interfaces and programmable regulators have emerged.
3. Simple operation direction
For industrial computer, simple operation is the best, which will become the future direction of development, simple operation can improve man-machine interface, simplify programming, operation panel using symbol keys, try to use dialogue, etc., to facilitate the use of users.
| Item | HLC Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| Max Panel Width (inch) | 25 | 25 | 25 | |
| Max Panel Length (inch) | 29 | 29 | 29 | |
| Max Layer Count (L) | 16 | 18 | 36 | |
| Max Board thickness (mm) | 3.2 | 4 | 6 | |
| Max Board thickness Tolerance | +/-10% | +/-10% | +/-10% | |
| Base copper Thickness | Inner layer ( OZ ) | 4 | 6 | 8 |
| Outer Layer ( OZ ) | 2 | 3 | 4 | |
| Min DHS ( mm ) | 0.2 | 0.15 | 0.15 | |
| PTH Size Tolerance ( mil ) | +/-2 | +/-2 | +/-2 | |
| Back Drill (stub)( mil ) | ~ 3 | ~ 2.4 | ~ 2 | |
| Max. AR | 12:1 | 16:1 | 20:1 | |
| Item | HLC Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| M-drill tolerance | Inner layer ( mil ) | DHS + 10 | DHS + 10 | DHS + 8 |
| Outer Layer ( mil ) | DHS + 8 | DHS + 8 | DHS + 6 | |
| Solder mask Registration (um) | +/- 40 | +/- 30 | +/- 25 | |
| Impedance control | ≥50ohms | +/-10% | +/-10% | -/-8% |
| <50ohms | 5 Ω | 5 Ω | 4 Ω | |
| Min LW/S (Inner)@1oz base Cu ( mil ) | 3.0 / 3.0 | 2.6 / 2.6 | 2.5 / 2.5 | |
| Min LW/S (Outer)@1oz Cu ( mil ) | 3.5 / 3.5 | 3.0 / 3.5 | 3.0 / 3.0 | |
| Max dimple for POFV ( um ) | 30 | 20 | 15 | |
| Surface Finishing | ENIG, Immersion Ag, OSP, HASL, Immersion Tin, Hard Au | |||
| Item | HDI Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| Structure | 5+n+5 | 6+n+6 | 7+n+7 | |
| HDI Stack Via | AnyLayer(12L) | AnyLayer(14L) | AnyLayer(16L) | |
| Board Thickness(mm) | Min. 8L | 0.45 | 0.4 | 0.35 |
| Min. 10L | 0.55 | 0.45 | 0.4 | |
| Min. 12L | 0.65 | 0.6 | 0.55 | |
| MAX. | 2.4 | |||
| Min. Core Thickness ( um ) | 50 | 40 | 40 | |
| Min. PP Thickness ( um ) | 30(#1027PP) | 25(#1017PP) | 20(#1010PP) | |
| Base Copper Thickness | Inner Layer ( OZ) | 1/3 ~ 2 | 1/3 ~ 2 | 1/3 ~ 2 |
| Outer Layer ( OZ ) | 1/3 ~ 1 | 1/3 ~ 1 | 1/3 ~ 1 | |
| Item | HDI Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| Min. Mechanical Drill hole size(um) ** | 200 | 200 | 150 | |
| Max. Through Hole Aspect Ratio * | 8:1 | 10:1 | 10:1 | |
| Min. Laser via/Pad Size ( um ) | 75/200 | 70/170 | 60/150 | |
| Max. Laser Via Aspect Ratio | 0.8:1 | 0.8:1 | 0.8:1 | |
| Laser Via on PTH(VOP)design | Yes | Yes | Yes | |
| Laser X type through hole(DT≤200um) | NA | 60~100um | 60~100um | |
| Min. LW/S (L/S/Cu, um) | Inner Layer | 45 /45 /15 | 40/ 40/ 15 | 30/ 30 /15 |
| outer Layer | 50 /50/ 20 | 40 /50 /20 | 40 /40 /17 | |
| Min BGA Pitch (mm) | 0.35 | 0.3 | 0.3 | |
| Item | HDI Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| Solder mask Registration (um) | +/- 30 | +/- 25 | +/- 20 | |
| Min. Solder Mask Dam (mm) | 0.07 | 0.06 | 0.05 | |
| PCB Warpage Control | >= 50ohm | +/-10% | +/-8% | +/- 5% |
| < 50ohm | +/- 5ohm | +/- 3ohm | +/- 3ohm | |
| PCB Warpage Control | ≤0.5% | ≤0.5% | ≤0.5% | |
| cavity Depth accuracy (um) | Mechanical | +/- 75 | +/- 75 | +/- 50 |
| Laser directly | +/- 50 | +/- 50 | +/- 50 | |
| Surface Finishing | OSP,ENIG,Immersion Tin,Hard Au, Immersion Ag | OSP,ENIG,Immersion Tin,Hard Au,Immersion Ag, ENEPIG | ||
| Item | SMT Capability | |||
| 2019 | 2020 | 2021 | ||
| Min board thickness ( mm ) | 0.1 | 0.06 | 0.05 | |
| Max. board size ( mm ) | 200 x 250 | 250 x 300 | 250 x 350 | |
| Chip component ( L, C, R etc. ) | Minimum size | 1005 | 1005 | 1005 |
| Connector | 0.5 mm pitch | Y | Y | Y |
| 0.4 mm pitch | Y | Y | Y | |
| 0.35 mm pitch | Y | Y | Y | |
| High density component : | 0.5 mm pitch | Y | Y | Y |
| TSOP, QFP, QFN, LGA, BGA etc. | 0.4 mm pitch | Y | Y | Y |
| 0.35 mm pitch | Y | Y | Y | |
| Reflow | N2 reflow | No | Y | Y |
| Under-fill | Fill under chip | Manual | Auto | Auto |
| ACF attach | Gold finger pitch | N/A | 0.3 mm | 0.2 mm |
| Inspection | Component position, direction, missing etc. | Manual check with 10 x scope | Auto AOI inspection | Auto AOI inspection |
| Solder paste thickness | Measure once per shift | 1 line auto full area, online SPI | All lines auto full area, online SPI | |
| Packaging & Delivery | |||||
| Packaging Details: | Inner: vacuum packing or Anti-static package, Outer: export carton or according to the customer's requirement. | ||||
| Port: | Shenzhen or Hongkong | ||||
| Lead Time: | Quantity(Pieces) | 1-10 | 11-100 | 101-1000 | >1000 |
| Est. Time(days) | 3-5 | 3-5 | 7-9 | To be negotiated | |
FAQ:
Q: What service do you have?
FASTPCB: We provide turnkey solution including PCB fabrication,
SMT, plastic injection & metal,final assembly, testing and other
value-added service.
Q: What is needed for PCB & PCBA quotation?
FASTPCB: For PCB: Quantity, Gerber file and technic
requirements(material,size, surface finish treatment, copper
thickness,board thickness).
For PCB: PCB information, BOM,Testing documents.
Q: How to keep our product information and design file secret ?
FASTPCB: We are willing to sign a NDA effect by customers side
local law and promising tokeep customers data in high confidential
level.
Q: What are the main products of your PCB/PCBA services?
FASTPCB: Automotive, Medical, Industry Control, IOT, Smart Home,
Military, Aerospace.
Q: What is your minimum order quantity (MOQ)?
FASTPCB: Our MOQ is 1 PCS, sample and mass production all can
support.
Q: Are you factory?
FASTPCB:Shangxing West Industrial Zone, Xihuan Road, Shajing Street, Bao 'an District, Shenzhen, Guangdong province, China
|
|
